Equipment
BREATHALYZER DEVICE
SCRAM RB PRO
- Tests can be scheduled, random, or on-demand
- Rugged, handheld, easy to use
- Automated facial intelligence(AFI)
- Ensures correct person is testing
- GPS location: taken with each test
- Text reminders to client
- Adjustable audible beep during testing time
- Uses Verizon or AT&T for communication

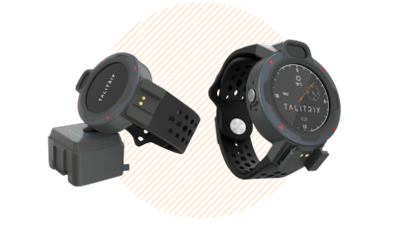

TALITRIX T-BAND OVERVIEW
Wrist-Worn GPS Tracking
The T-Band is small, lightweight, and worn on the wrist. It tracks participants' locations in real-time, using GPS, LTE, and Wi-Fi. This discreet design reduces the stigma compared to bulkier ankle monitors.
Cordless Charging
The T-Band charges without needing to be plugged into a wall, allowing the participant to move freely during charging. The battery lasts 18-24 hours and can be charged in less than 2 hours.
Real-Time Monitoring
The T-Band provides continuous location updates every 60 seconds. In critical situations, such as tampering or if a participant enters a restricted area, updates occur every 15 seconds. This ensures supervising staff can respond quickly to potential issues.
Privacy-Focused Design
Unlike other systems that rely on phones or base stations, the T-Band operates independently, respecting participants' privacy while ensuring accurate location tracking. This helps maintain the dignity of participants while keeping the public safe.
Heart Rate Tamper Detection
The device monitors heart rate every 15 seconds to detect tampering or health issues. If the participant's heart rate drops significantly or if the device is tampered with, an alert is sent to supervisors, allowing immediate action.
Extended Battery Life
The T-Band features a long-lasting battery, reducing the need for frequent recharges. It can last up to 24 hours with typical use, and certain models offer up to 50 hours of battery life. This helps prevent low-battery violations and ensures the device remains operational.
Supervisor Monitoring View
Supervising staff can use a web platform or app to monitor all participants at once or review individual cases in more detail. The platform provides real-time tracking and the ability to analyze specific participant behavior.
Zone Types
Inclusion Zones
These are areas where the participant must stay within at all times (e.g., specific states, counties, or a set distance from a location). The participant cannot leave the zone under any circumstance.
Scheduled Zones
Participants may have zones set for specific activities like work, school, or treatment. These zones are only active during the scheduled times and allow participants to move freely within the set boundaries.
Restricted Zones
Areas where participants are prohibited from entering. These zones can vary in size and shape, and can be as small as a specific building or as large as an entire neighborhood.
Event Zones
Temporary zones created for specific events such as doctor appointments. These zones are set with both time and location details.
Pursuit Mode
Pursuit Mode activates in emergency situations and provides location updates every 30 seconds for 30 minutes. This feature is useful when participants breach their zones or are suspected of tampering, allowing for more frequent monitoring during critical periods.
ALCOHOL MONITORING

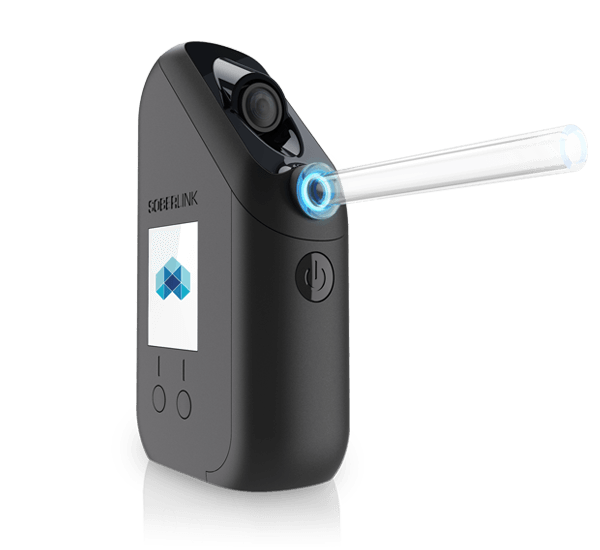

SL3: Portable Alcohol Monitor
· Portable alco-sensor with picture verification monitor
· No Landline Needed, cellular
· Uses Verizon SIM Network
· Uses advanced facial recognition software to verify compliance
· Test reminders can be sent to a cell phone
· Gives GPS location for positive/negative breath tests
· Violations are sent immediately via text or email
· Small lightweight and portable
HOUSE ARREST

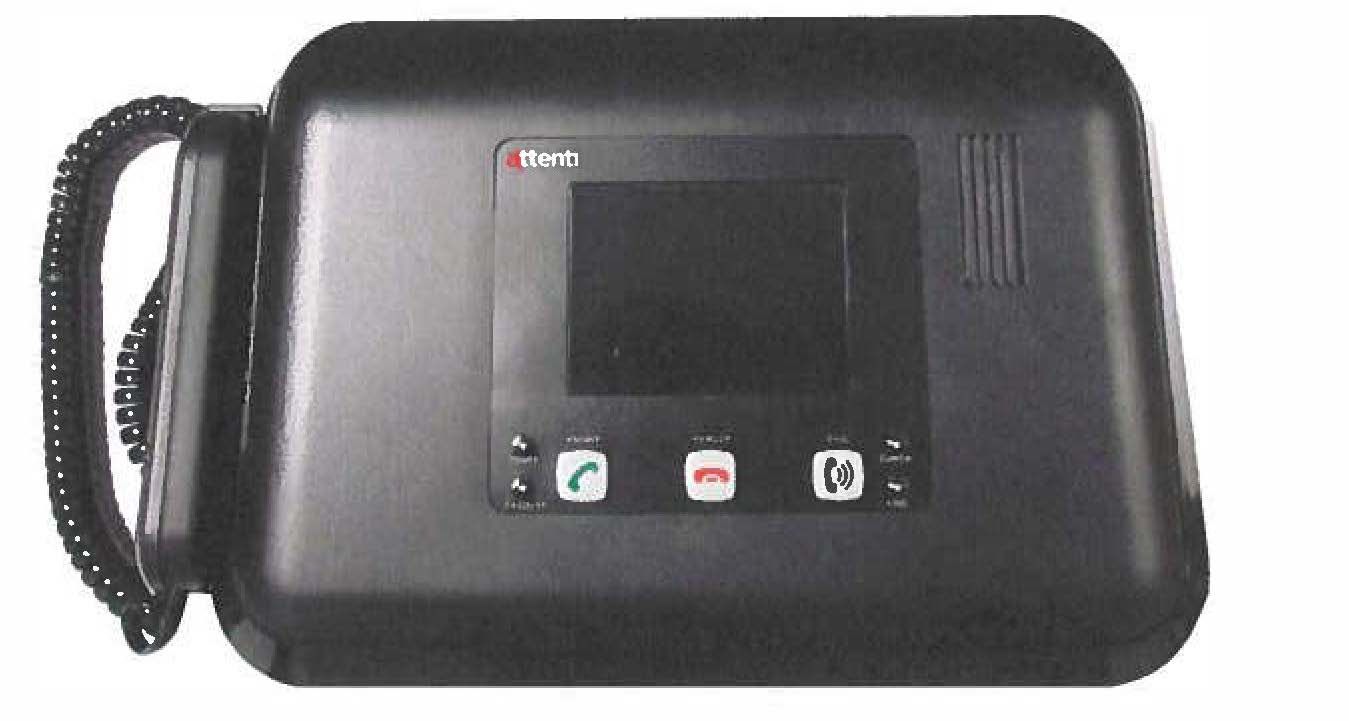

Base Unit 3000
Home Curfew RF 3000 LTE Operating Features
Communication
The Base Unit 3000 LTE will call Attenti to download event data every 6 hours. It will also call out immediately upon a violation, during a "Home" or "Away" status change, when the Base Unit collects a GPS point, and when a user sends a Download Events command. By default, the Base Unit 3000 LTE will utilize the cellular network to transmit event data. However, if cellular coverage is unavailable, a phone line and/or Wi-Fi network can be added as a back-up means of communication.
Wi-Fi Communication
A Wi-Fi module allows the device to transfer all data to the Attenti servers via a wi-fi network if cellular communication or landline services are unavailable.
Motion Sensor
There is a motion sensor located inside the Base Unit 3000 LTE to allow it to determine if it is being moved. If the motion sensor determines that the device is being moved, an alarm (Base Location Untrusted) will occur.
GPS
The Base Unit 3000 LTE includes a GPS module that allows users to view the device's current GPS location. GPS points will be automatically collected upon activation and during Base Location Untrusted Alarms (grace points, violation points, and cleared points).
Note: It is also possible to view GPS points when utilizing the Get Location feature. Additional information about this feature can be found in Device Parameters.
30 Day Event Memory
The Base Unit 3000 LTE will store up to 30 days of events if the device loses cellular/landline/Wi-Fi coverage. The Base Unit 3000 LTE will continue to store the information and will send the information to Attenti when coverage is restored.
57 Hour Battery Backup
If the Base Unit 3000 LTE loses power, it has a 57 hour back-up battery that will allow the Base Unit 3000 LTE to record and store events, as well as transmit the data to Attenti, if cellular/landline/Wi-Fi coverage is available.
Incoming Calls
The Base Unit 3000 LTE can receive incoming calls.
Outgoing Calls
The Base Unit 3000 LTE can make outgoing calls to a preprogrammed number.

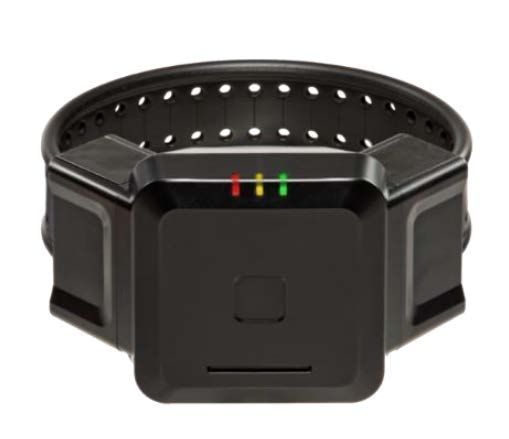

BLUtag®
FEATURES:
- Built-in, proprietary anti-jamming and shielding technology
- On-board memory stores GPS locations and event data
- Audio, vibration, and LED alert notifications
- 50+hours of battery life from a single charge, 75+ hours when using an additional mobile charging device
- Custom alerts: Zones, Tampers, Low-battery, Charge On/Off, Motion Detection
- Rugged, injection-molded case with internal photo-optic sensor
- Enhanced Secondary Location Technology
